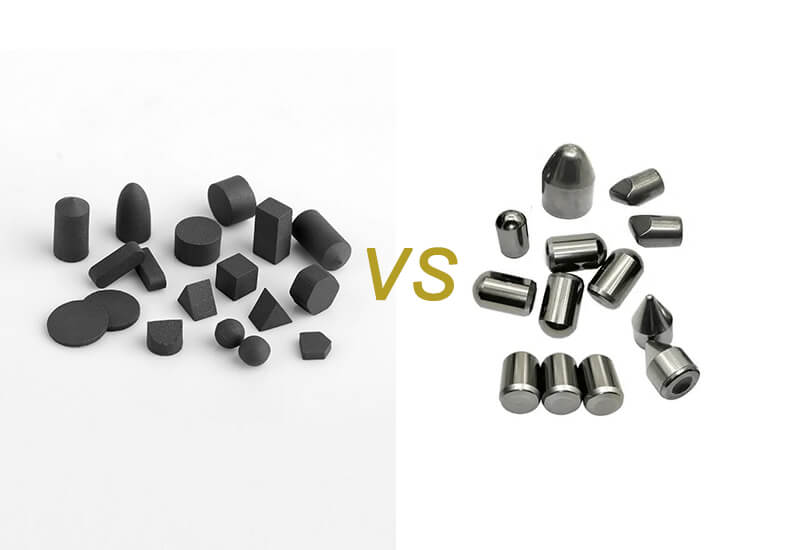

PDC Inserts and Carbide Inserts are among the most widely used industrial tools today, and their “cutting tool performance comparison” is critical for improving productivity and reducing operational costs.
Especially in applications such as oil drilling, mining, and precision machining, the choice between PDC inserts and carbide inserts can significantly affect outcomes. This article provides an in-depth comparison between two mainstream materials—PDC cutters and carbide cutters.
Material Composition
PDC Inserts
PDC inserts (Polycrystalline Diamond Compact) are engineered using a diamond composite layer bonded to a tungsten carbide substrate through High-Pressure high-temperature (HPHT) sintering. This structure offers exceptional hardness and wear resistance, ideal for challenging drilling environments.
Carbide Inserts
Carbide inserts are produced through powder metallurgy using tungsten carbide and cobalt. Known for their toughness and thermal stability, carbide inserts are common in metal machining operations and are more cost-effective for short-term or precision applications.
Insert Performance: Wear Resistance, Thermal Stability, Impact Toughness
Wear Resistance
PDC inserts are superior in wear resistance, lasting up to 10–50 times longer than carbide inserts in abrasive drilling environments. This makes them highly suitable for high-impact sectors like oil and gas drilling or geological exploration.
Thermal Stability
Carbide inserts remain stable up to 1000°C but decline in performance above that. Modern PDC inserts, enhanced with TSP (Thermally Stable Polycrystalline), perform well at 750–900°C, meeting the needs of high-temperature drilling projects.
3Better offers PDC products with these advanced thermal properties—please contact us for more technical specifications. Email: [email protected]
Impact Resistance
Carbide inserts are known for their fracture toughness, especially in intermittent cutting.
3Better PDC inserts feature gradient materials and improved bonding interfaces, significantly boosting their impact resistance. It has perfect performance in some application scenarios.
Application Scenarios for PDC Inserts
- Oil & gas drilling in hard formations
- Mining operations with high abrasion
- Geological exploration and coring
- Tunneling with rock-cutting requirements
Application Scenarios for Carbide Inserts
- Precision turning, milling, and boring
- Mold and die manufacturing
- General-purpose machining in variable conditions
Cost Comparison and ROI
PDC inserts generally have a higher unit price than standard carbide inserts. However, due to their longer service life and lower replacement frequency, they offer better cost-efficiency in large-scale operations. For example, a case study in an oilfield project showed that using PDC inserts reduced tool replacements by 70% for the same drilling depth, cutting downtime and labor costs.
Carbide inserts are more accessible and affordable. They are suitable for medium-to-short cycle operations or environments with frequently changing conditions, with lower initial investment.
Thus, in high-frequency, long-cycle drilling, PDC inserts are more economical; in conventional machining or small-batch manufacturing, carbide inserts offer better value.
Tool Selection Guide
To choose between PDC and carbide inserts, consider:
- Type of material being processed
- Thermal and impact conditions
- Cost per cycle vs. tool life
- Desired precision and repeatability
Buyers should closely monitor tool performance across specific scenarios and base selection on real-world data and contextual requirements. This data-driven, scenario-matched selection ensures true cost-effectiveness.
Ultimately, whether using PDC or carbide tools, the key is to apply the right tool in the right context. Only through precise matching can the performance of cutting tools be fully realized, achieving both process optimization and business success.
