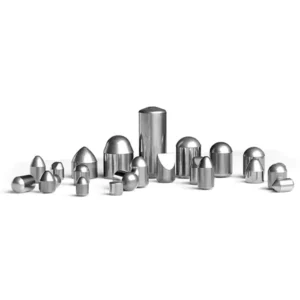

Carbide Buttons

Tungsten carbide buttons are highly wear-resistant components used in drilling and mining. With unique performance, high hardness, and excellent wear resistance, they are widely applied in various industries. From oil drilling to coal mining and road maintenance, these buttons excel in crushing strong rocks and are utilized in different types of drill bits.
Application:   Oil drilling and shoveling, snow plow machines, and other equipment. 2. Used for coal drilling, mining machinery, and road maintenance tools. 3. used in quarrying, mining, tunneling, and civil construction. 4. DTH Drill bit, thread drill bit, and other drill bits.
Feature:   Having unique working performance. 2..High hardness and good wear resistance. 3. Widely used in the mining of various rocks and oil drilling. 4. Suitable for crushing very strong granite, limestone, poor iron ore, etc.
Shape: Besides the usual shapes, large demands can be customized.

Description

Tungsten carbide is used in many drilling and mining fields. High resistance to wear is demanded in drilling, milling, trenching, and cutting. We offer an extensive product line, including many dimensions and shapes that are constantly used on drilling and mining tools. We also manufacture tungsten carbide/ hard alloy buttons in special shapes for certain applications.



Types

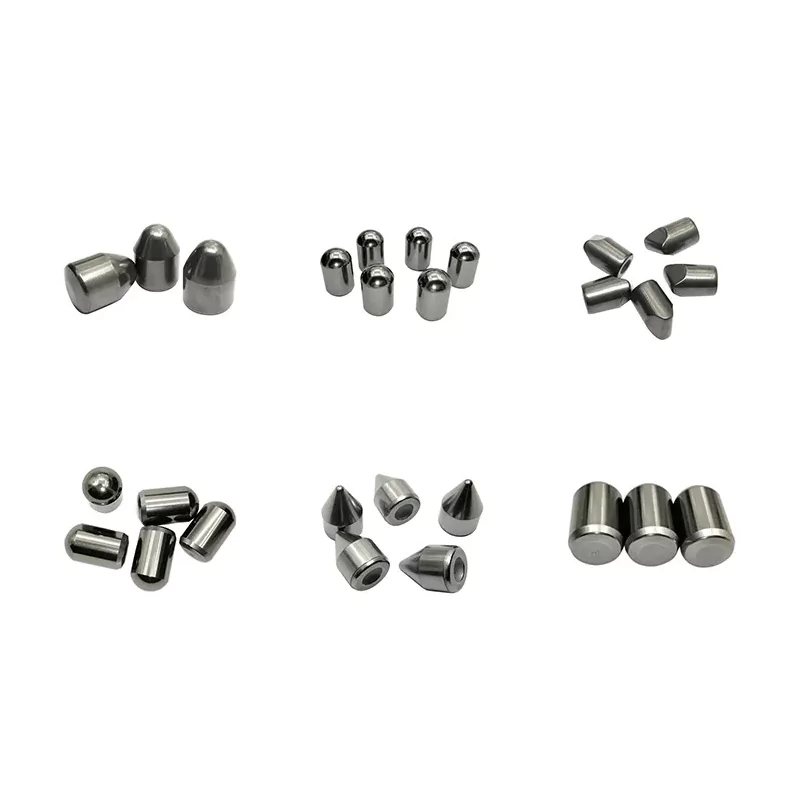

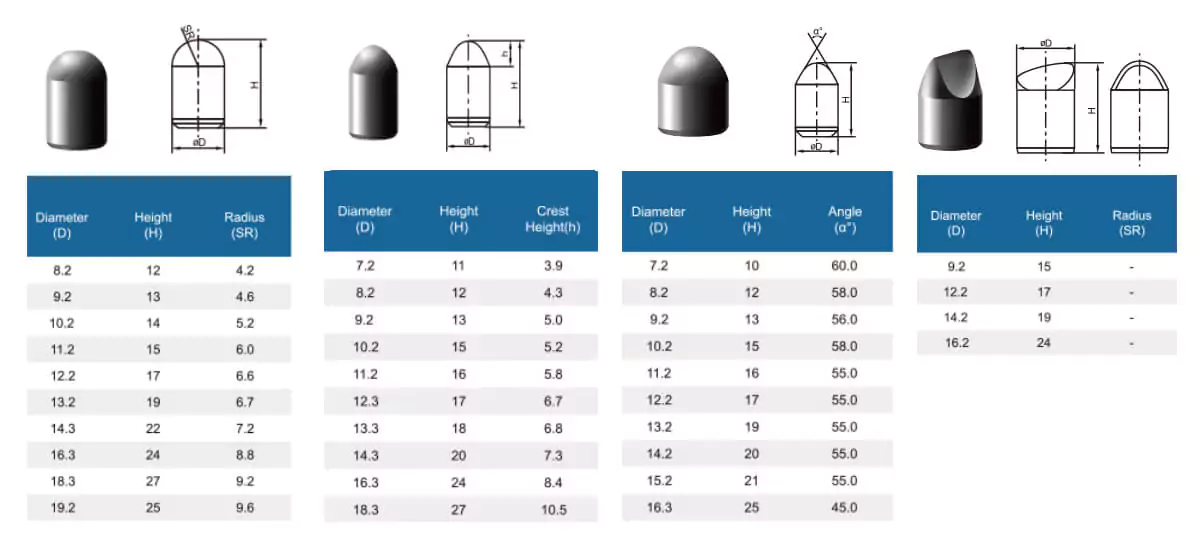

1. CARBIDE INSERT OF DTH HAMMER AND DRILL BITS FOR MINING

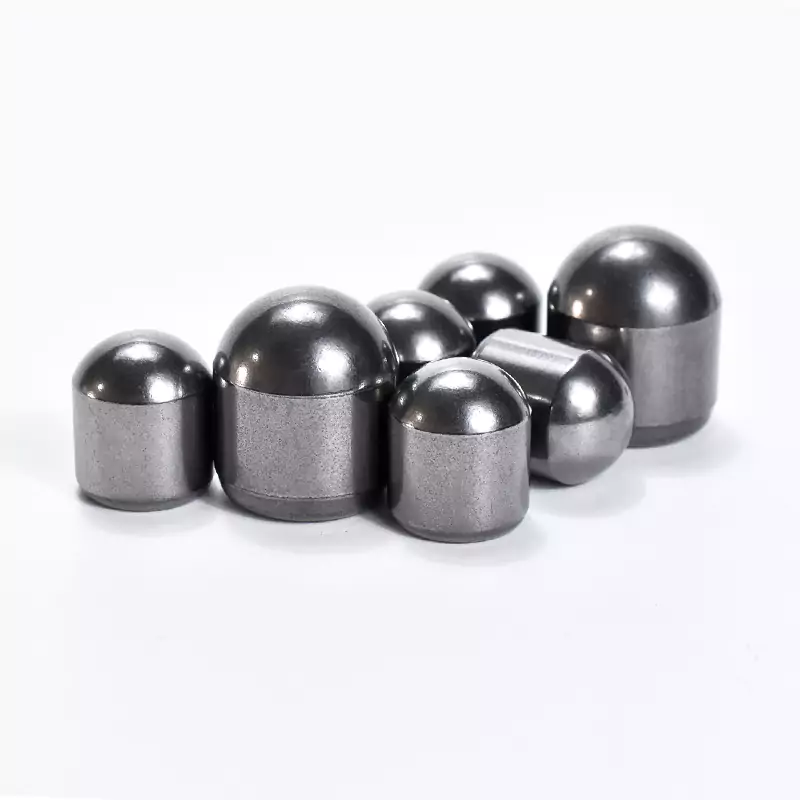

Carbide Buttons 1

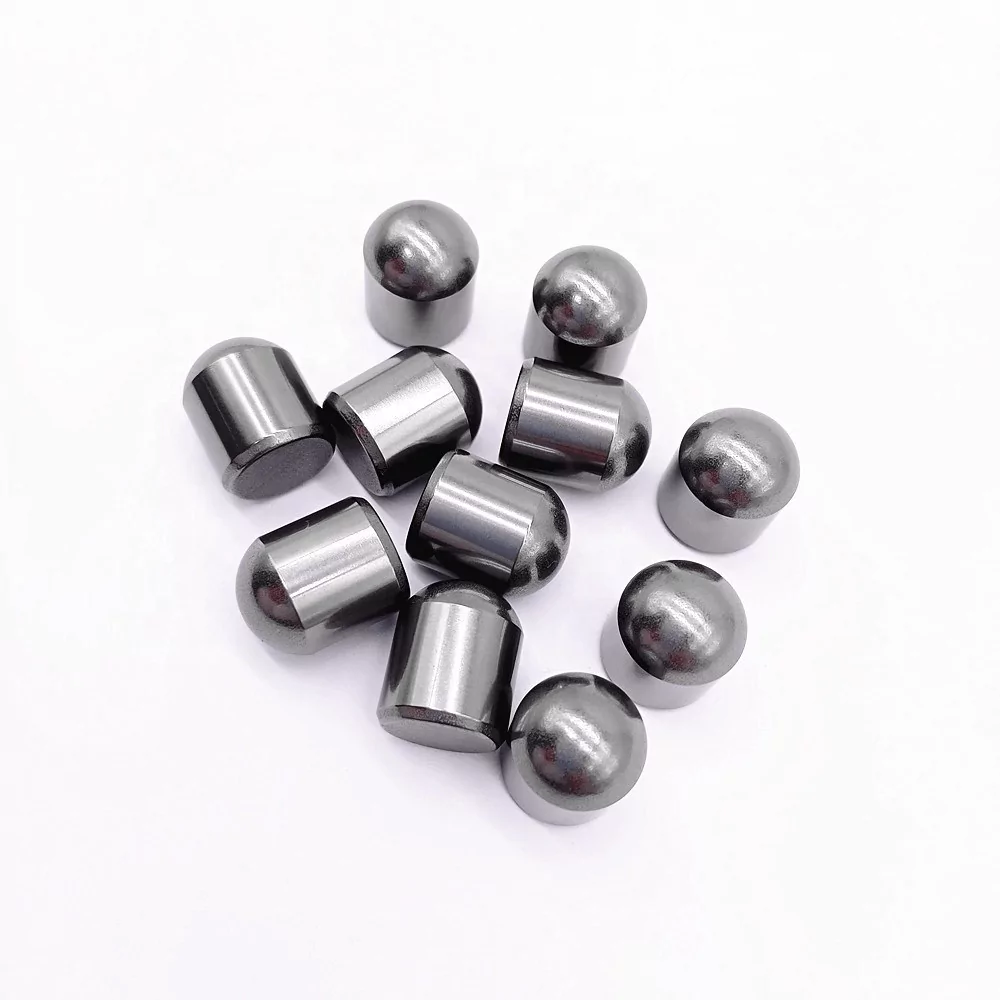

Carbide Buttons 2


Grade Density(g/cm³) Hardness(HRA) TRS(Mpa) Application
YG6-S 14.9 90.5 3000 Suitable for high-pressure DTH hammer bit,

drilling on ultra-hard rock formations.

YG6-ST

(Import raw materials)

14.9 90.5 3100 Suitable for hydraulic threaded drill bits and top

hammer, drilling on hard rock formations.

YG6-G 14.9 90.5 2900 Suitable for high-pressure DTH hammer bit and

threaded drill bit, drilling on a hard rock formation.

YG6 14.9



90.5 2700 Suitable for all kinds of cold-mounted rock drill

bits, drilling on medium and hard rock formations.

YG8 14.72 89.9 2800 Suitable for all kinds of brazed drill bits, drilling

on the mid-soft complicated rock formation.

YG10 14.52 87.5 2900 Suitable for various mining tri-cone bit with insert

that the open head is shorter, and the profile is

simple drilling on a medium hard rock formation.

YG13 14.42 87.0 3000 Suitable for various mining tri-cone bit with insert

that the open head is higher and the profile is

complicated drilling on hard rock formations.

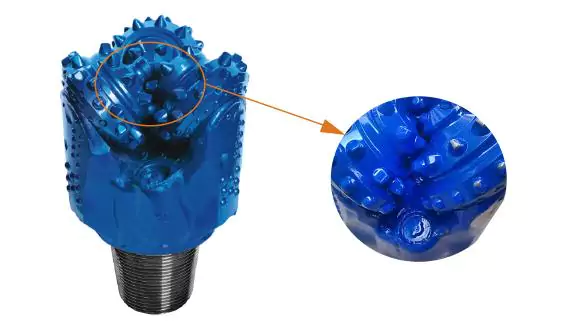

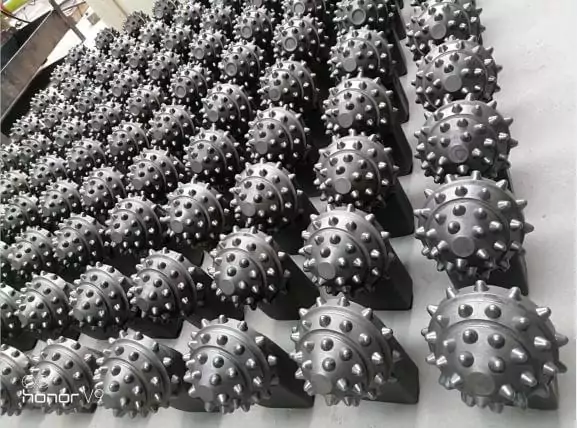

2. CARBIDE INSERT OF DRILLING TOOLS FOR OILFIELD EXPLORATION

Carbide Buttons 3 Carbide Buttons 4

Grade Density(g/cm³) Hardness(HRA) TRS(Mpa) Application
YG10 14.5 89.0 2800 Suitable for low drilling pressure tricone bit with full

shape of the alloy tooth crown and simple profile, drilling on medium hard rock formation.

YG11 14.5 88.0 3200 Suitable for medium and low drilling pressure tricone

bit with insert that open head is shorter and profile is

simple, drilling on medium hard rock formation.

YG13 14.25 87.5 2600 Suitable for medium drilling pressure tricone bit with

the height of insert of open head is medium and profile

is simple, drilling on medium hard rock formation.

YG15 13.9 86.5 2800 Suitable for high drilling pressure tricone bit with insert

of open head is high and profile is complicated, drilling

on ultra hard and complex geological structure rock formation.

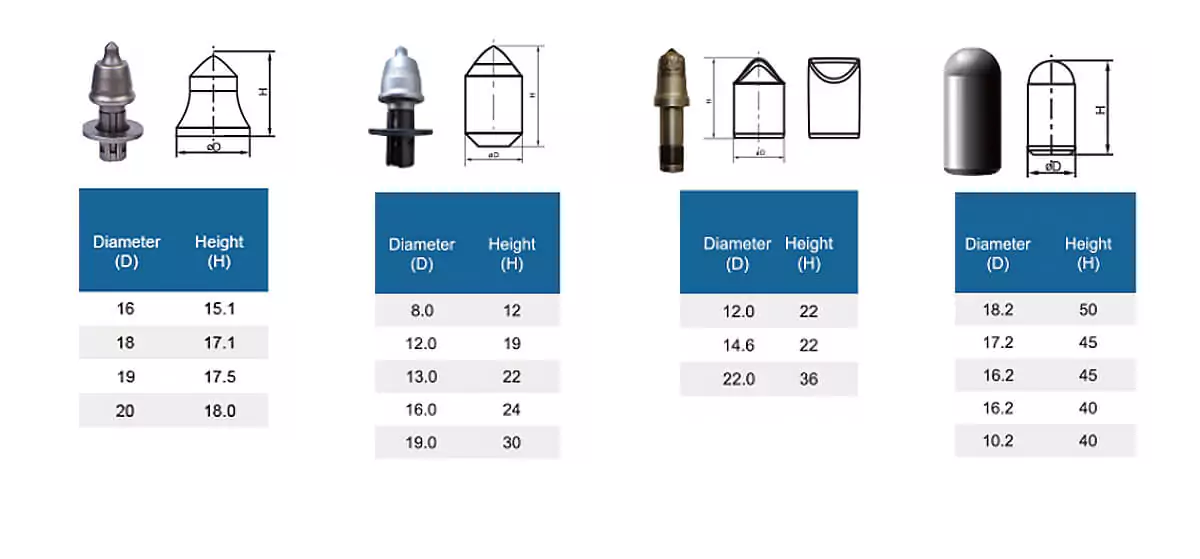

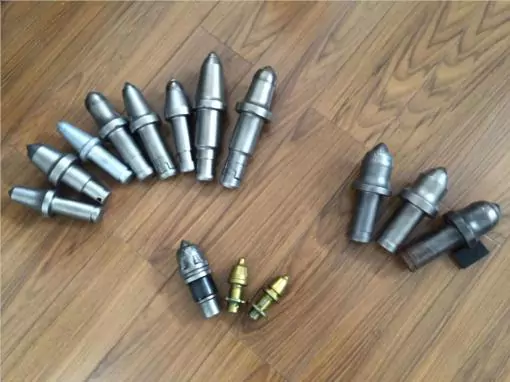

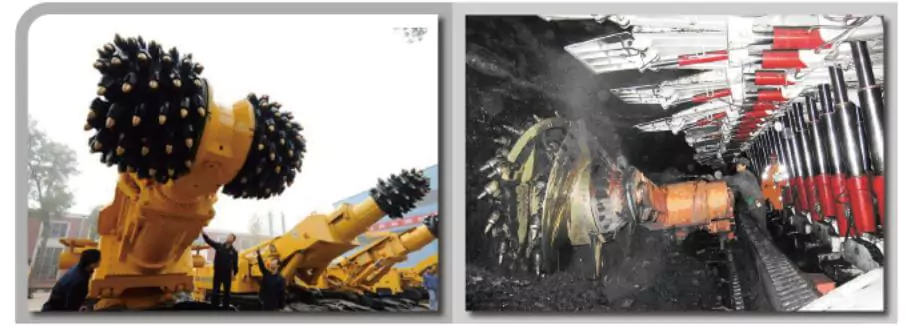

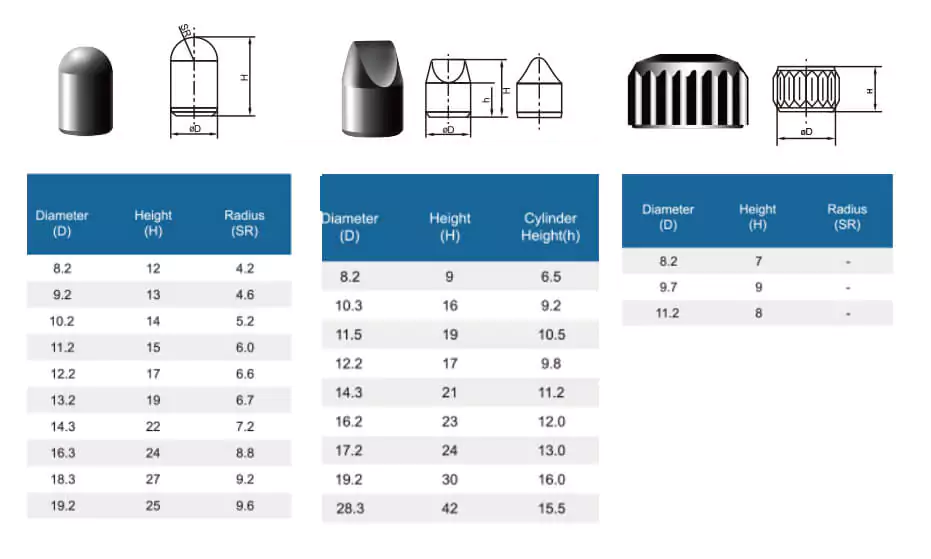

CARBIDE INSERT FOR COAL MINING

Carbide Buttons 5 Carbide Buttons 6

Carbide Buttons 7

Grade Density(g/cm³) Hardness(HRA) TRS(Mpa) Application
YG10 14.5 87.5 2400 Suitable for welding coal mining tooth in coal

mining machine, drilling on mid-soft rock

formation.

YG10-G 14.5 86.0 2480 Suitable for welding coal mining tooth in

tunnel excavation, drilling on hard rock

formation.

YG10-S 14.5 86.5 2600 Suitable for welding coal mining tooth in

tunnel excavation, drilling on extra hard

rock formation or complex geological structure

rock formation.



YG8-G 14.72 86.8 2550 Suitable for welding alloys for picks, and

the drilling rock is hard.



YG8-3 14.72 86.8 2600 Suitable for alloys for welding picks, and

the drilling rock is a hard rock layer, and rock

layer with large sand content and complex

structure, which can significantly improve the service life.

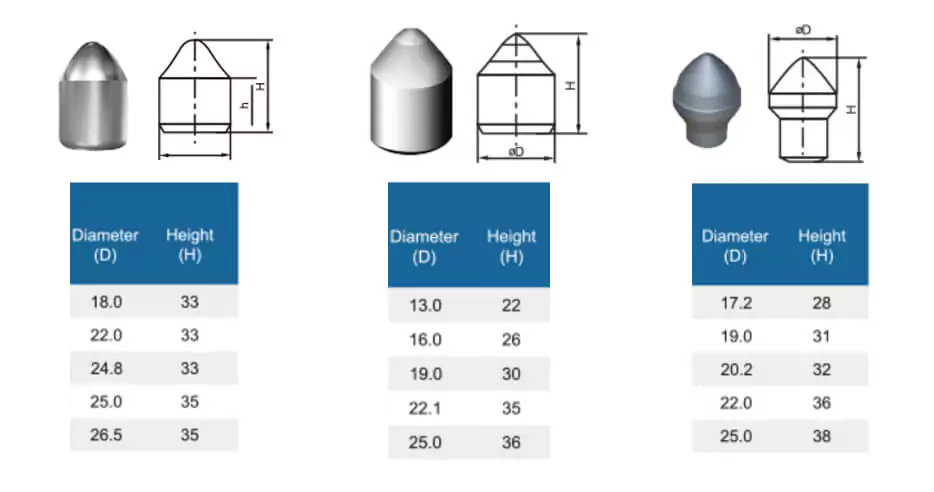

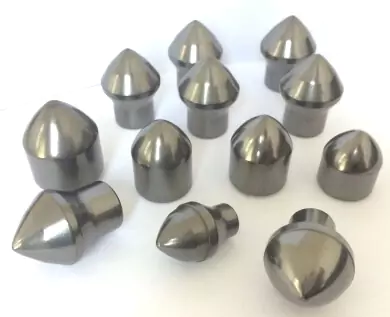

4. CARBIDE INSERT FOR ENGINEERING CONSTRUCTION



Carbide Buttons 8 Carbide Buttons 9 Carbide Buttons 10

Grade Density(g/cm³) Hardness(HRA) TRS(Mpa) Application
YG6 14.95 89.0 2600 Suitable for milling and planning the concrete road

surface.

YG10 14.50 88.5 2700 Suitable for mounting on hobbling, disc cutter

and rotary drilling rig, drilling on medium-hard

rock formation.

YG11 14.45 88.0 2800 Suitable for mounting on hobbling, disc cutter

and rotary drilling rig to cut hard rock formations.

YG13 14.25 87.50 2900 Suitable for rotary excavation palm, hod, cutter

head, shield, roller press stud alloy, the drilled

rock layer is a hard rock layer.

YG16 13.95 85.50 3200 Suitable for hobbling, disc cutter, shield cutter,

HPGR and rotary drilling tools, drilling on ultra

hard and complex structure rock formation.

YG11-D 14.45 87.5 3200 The special grade for high-pressure grinding rolls

(HPGR) studs.

YG13-D 14.25 87.0 3100 The special grade for high-pressure grinding rolls

(HPGR) studs.

YG15-D 14.00 86.5 3100 The special grade for high-pressure grinding rolls

(HPGR) studs.

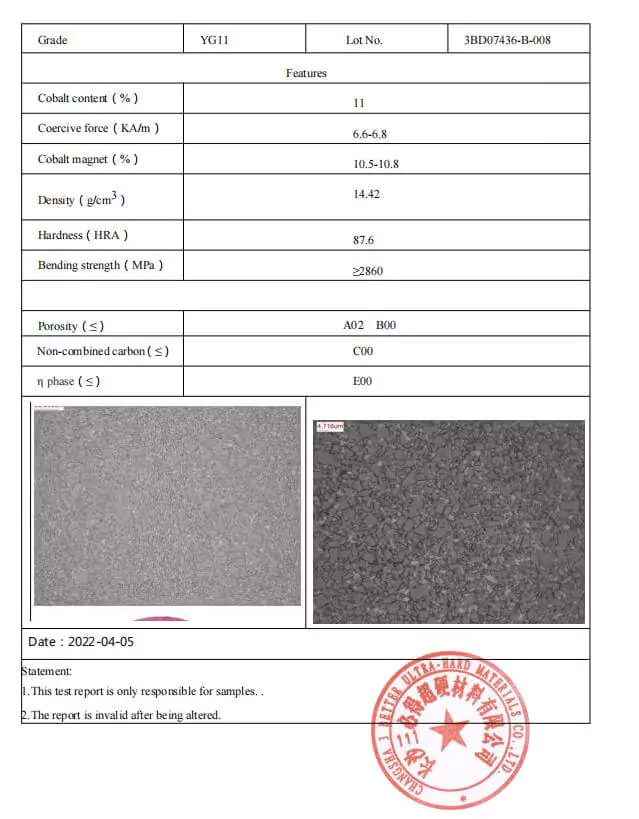

Certificate:

Carbide Buttons 11

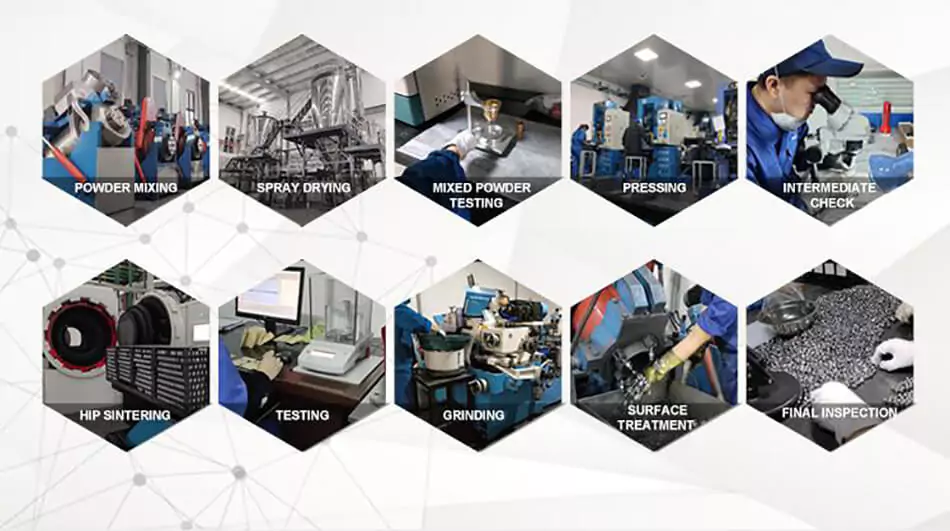

Production process



Carbide Buttons 12

RFQ

Our factory typically produces items based on orders. The production cycle ranges from 3 to 10 working days, depending on the order size.

However, production may be sequenced during high-order volume periods, potentially extending the production cycle.

If timely delivery is crucial for you, please consult with our sales team to confirm a more accurate timeline.

We cooperate with DHL, FedEx, UPS, TNT, and other major carriers. If you do not specify a preferred carrier, our follow-up department will select the most suitable one.

Typically, delivery to Europe and America takes about 7 days, to Asian countries 3-4 days, and to other American countries 10-15 days. Please note that the exact times are subject to the schedules published by the shipping companies.
