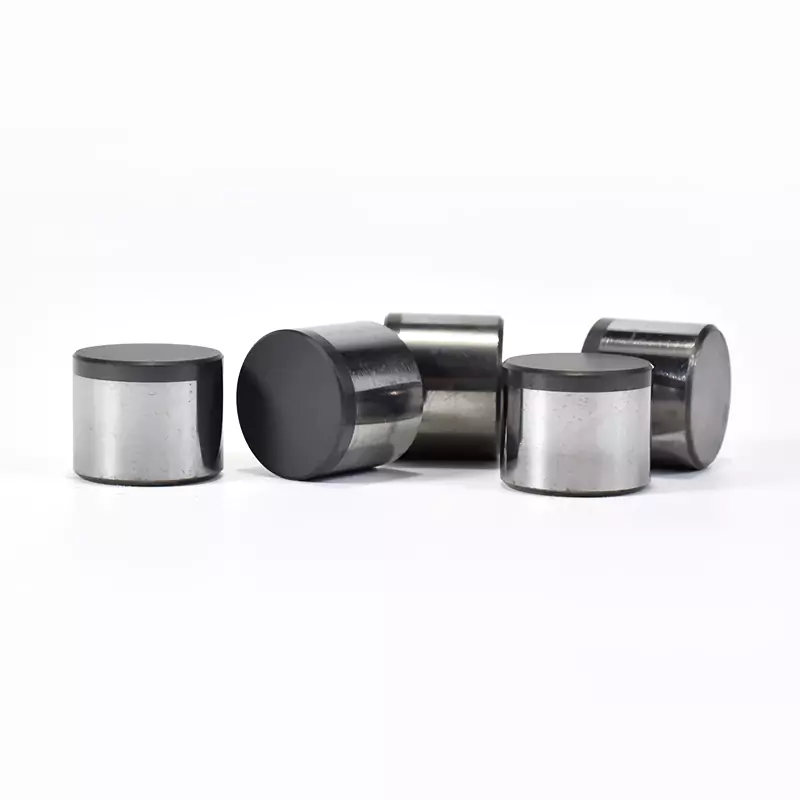

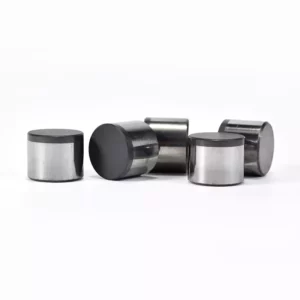

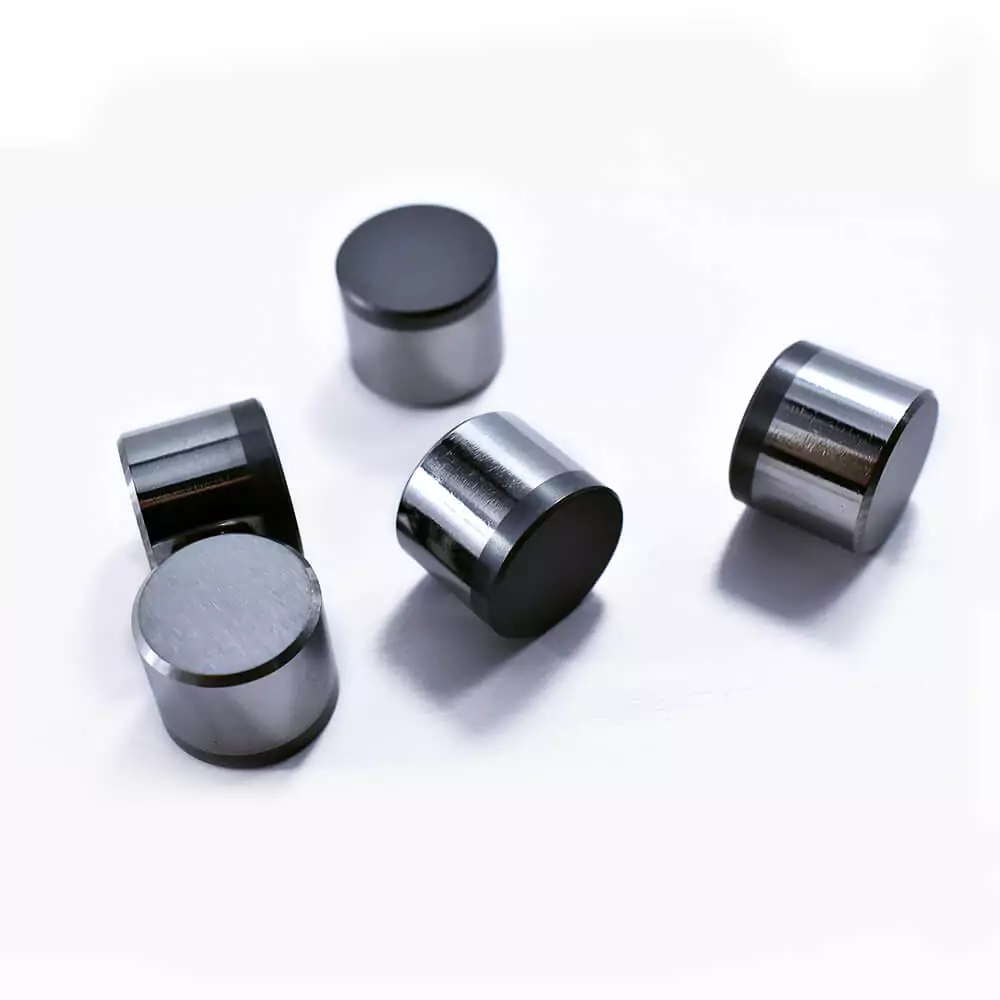

PDC cutters for main cutting

This series is synthesized by the unique high temperature and high-pressure process, using customized raw materials, supplemented by finite element analysis, temperature measurement, pressure measurement, and other technologies, combined with a variety of performance evaluation methods, the wear resistance and impact resistance of PDC cutters are specially designed, the diamond layer to have high strength, high hardness, and high wear resistance, and using a variety of tooth structures and special post-processing technology, effectively reduce the residual stress of PDC cutters, and the interface is more solid and uniform, and have better performance.
Usage:   For main cutting of PDC Bits and PDC Hole Opener in oil and gas drilling complex formation.
Feature:   With Excellent Impact Resistance/High Wear Resistance/High Self-sharpness/High Strength/High Hardness/High Stability, this ensures achieve high Rates of Penetration (ROP) with longer tool life, deeper drilling depth.
Size:   1313/1613/1616/1913/1916/ 1919
Description

This grade of PDC cutters uses a higher level of diamond powder and cemented carbide substrate. The microscopic characteristics of the bond enable the diamond layer to have high strength, high hardness, and high wear resistance. Using a variety of tooth structures and special post-processing technology, effectively reduce the residual stress of the diamond composite sheet, the interface is more solid and uniform, with high thermal stability and strong impact toughness.

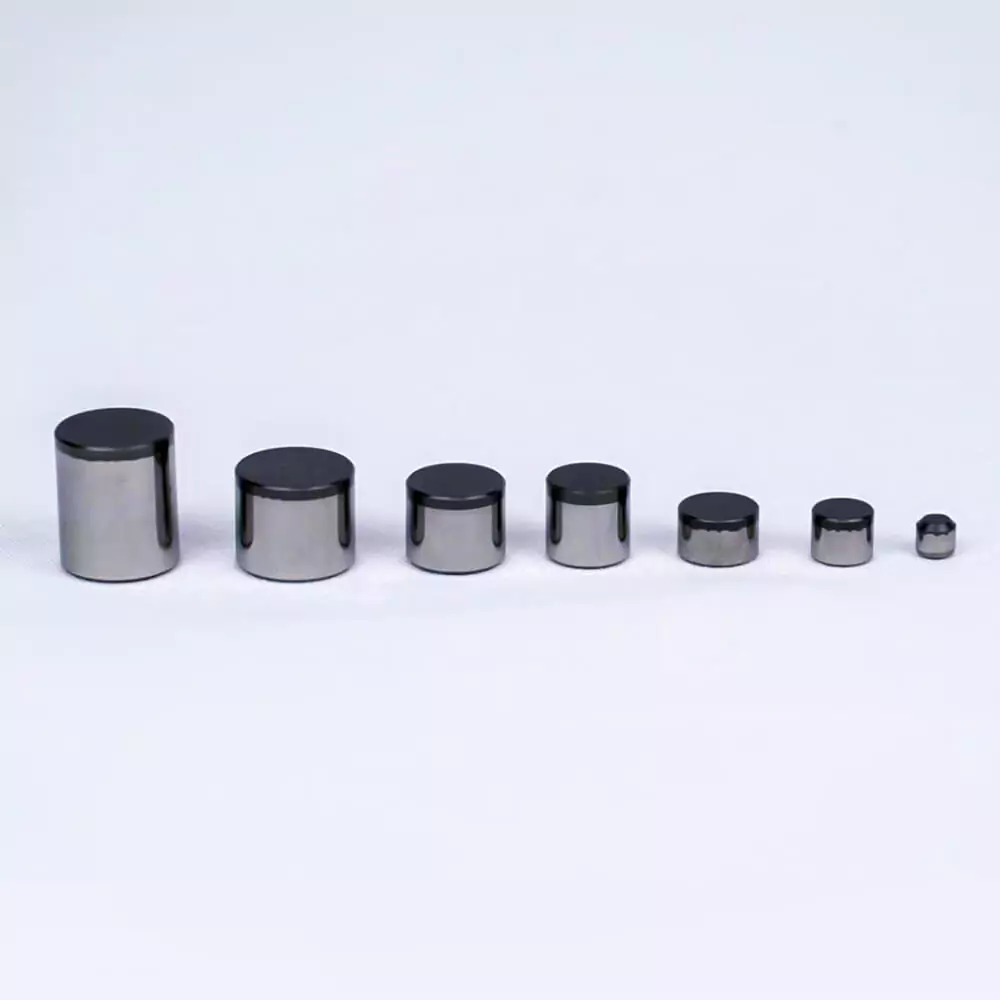

Available Sizes



  Code D( mm) H(mm)  PCD Thickness (mm)  PCD Chamfer (mm)   Carbide Chamfer (mm)
1919   19.05±0.05   19.05±0.10 2.0-2.4 0.5×45° 0.65×45°
1916 19.05±0.05 16.0±0.10 2.0-2.4 0.5×45° 0.65×45°
1913 19.05±0.05 13.2±0.10 2.0-2.4 0.5×45° 0.65×45°
1616 15.88±0.05 16.0±0.10 2.0-2.4 0.5×45° 0.65×45°
1613 15.88±0.03 13.2±0.10 2.0-2.4 0.5×45° 0.65×45°
1608 15.88±0.03 8.0±0.10 2.0-2.4 0.3×45° 0.5×45°
1313 13.44±0.03 13.2±0.10 1.8-2.0 0.3×45° 0.5×45°
1308 13.44±0.03 8.0±0.10 1.8-2.0 0.3×45° 0.5×45°

Note: The above specifications are for users to choose from. At the same time, different specifications of products can be produced and processed according to the requirements and drawing of users.



Advantage



Features:
• The impact resistance is excellent.
• Synthesized by ultra-high pressure to enhance the bonding strength.
• The wear resistance and heat resistance are greatly improved.
• Low-stress interface and optimized tooth.

Performance:
Wear Resistance: ★★★★☆      Impact Resistance: ★★★★☆      Heat Resistance: ★★★★

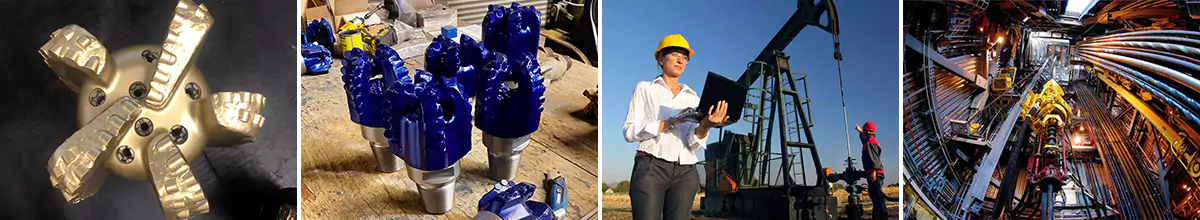

Applications





RFQ

Our factory typically produces items based on orders. The production cycle ranges from 3 to 10 working days, depending on the order size.

However, production may be sequenced during high-order volume periods, potentially extending the production cycle.

If timely delivery is crucial for you, please consult with our sales team to confirm a more accurate timeline.

We cooperate with DHL, FedEx, UPS, TNT, and other major carriers. If you do not specify a preferred carrier, our follow-up department will select the most suitable one.

Typically, delivery to Europe and America takes about 7 days, to Asian countries 3-4 days, and to other American countries 10-15 days. Please note that the exact times are subject to the schedules published by the shipping companies.
