PDC cutters for gauge protection

This series uses a higher level of diamond powder and cemented carbide substrate, using new high-efficiency catalysts and new processes, with a complete CC bond between the diamond grains in the polycrystalline diamond layer. The microscopic characteristics of the bond enable the diamond layer to have high strength, high hardness, and high wear resistance. Using a variety of tooth structure and special post-processing technology, effectively reduce the residual stress of the diamond composite sheet, the interface is more solid and uniform, and have better performance.
Usage:   For back cones,and gauge protection parts of PDC Bits/PDC Hole Opener/ Stabilizers/ Downhole Tools in oil and gas drilling,and for drive bearing.
Feature:   Oil & Gas industry demands high speed, durability and toughness, PDC cutters will achieve all this in the downhole application.
Size:   0808/1008/1308/1313/1608/1613/1616/1908/1913/1916/1919

Description

This series uses a higher level of diamond powder and cemented carbide substrate, using new high-efficiency catalysts and new processes, with a complete CC bond between the diamond grains in the polycrystalline diamond layer. The microscopic characteristics of the bond enable the diamond layer to have high strength, hardness, and wear resistance. Using a variety of tooth structure and special post-processing technology, effectively reduce the residual stress of the diamond composite sheet; the interface is more solid and uniform, and have better performance.



Available Sizes



 Code D( mm) H(mm)   Diamond Height (mm)   Diamond Chamfer (mm)   Carbide Chamfer (mm)


1616

15.88±0.05 16.0±0.10 2.0-2.4 0.3×45° 0.5×45°
1613 15.88±0.03 13.2±0.10 2.0-2.4 0.3×45° 0.5×45°
1608 15.88±0.03 8.0±0.10 2.0-2.4 0.3×45° 0.5×45°
1313 13.44±0.03 13.2±0.10 1.8-2.0 0.3×45° 0.5×45°
1308 13.44±0.03 8.0±0.10 1.8-2.0 0.3×45° 0.5×45°
1208 12.98±0.03 8.0±0.10 1.8-2.0 0.3×45° 0.5×45°
1013 10.00±0.03 13.0±0.10 1.8-2.0 0.3×45° 0.5×45°
1010 10.00±0.03 10.00±0.10 1.8-2.0 0.3×45° 0.5×45°
1008 10.00±0.03 8.00±0.10 1.8-2.0 0.3×45° 0.5×45°
0810 8.00±0.03 10.00±0.10 1.8-2.0 0.3×45° 0.5×45°
0808 8.00±0.03 8.00±0.10 1.8-2.0 0.3×45° 0.5×45°
0803 8.00±0.03 3.00±0.10 1.0-1.2 0.3×45° 0.2×45°

Note: the above specifications are for users to choose from. At the same time, different specifications of products can be produced and processed according to the requirements and drawing of users.



Advantage


Features:

•  The wear resistance is excellent.

•  Using special customized raw materials.

•  Synthesized by ultra-high pressure.

•  Low-stress interface and optimized tooth.

Performance:
Wear Resistance: ★★★★       Impact Resistance: ★★★☆       Heat resistance: ★★★☆



Application



Suitable for formations and horizontal drilling with high wear resistance and general impact requirements.

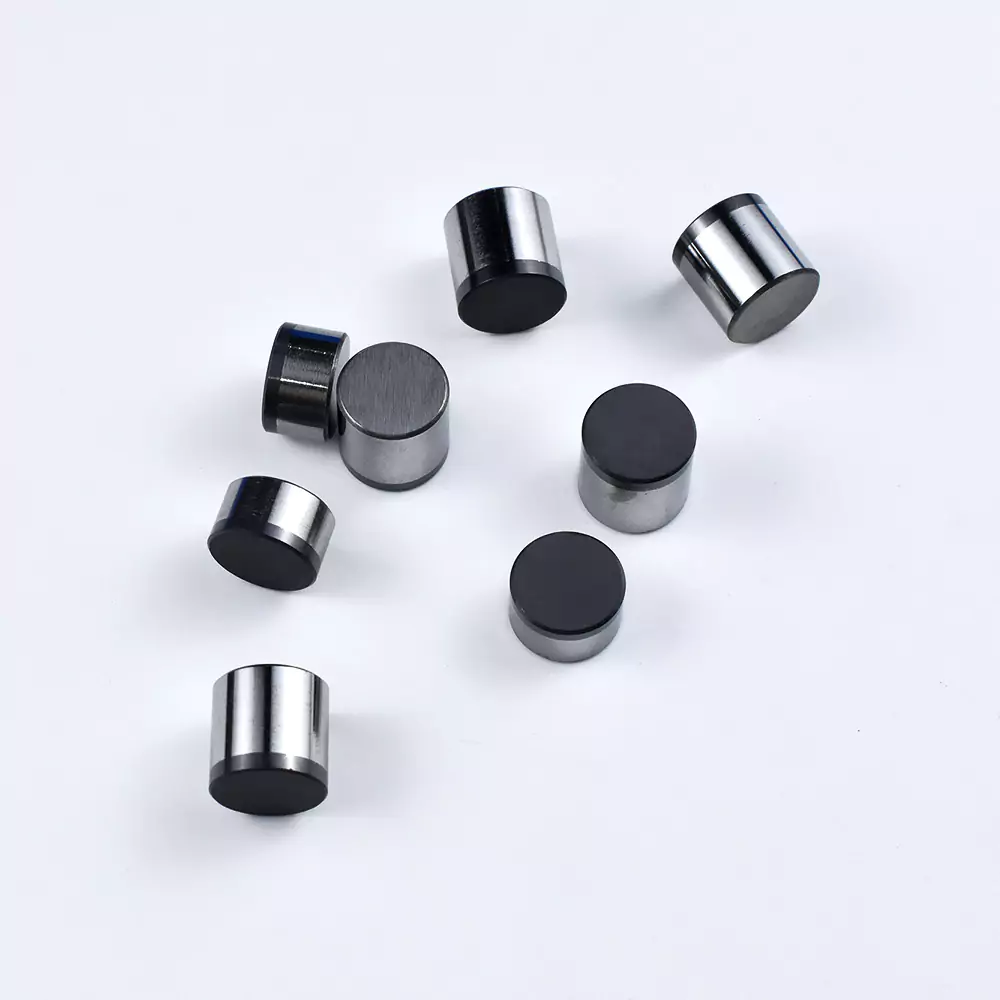

PDC cutters for gauge protection 1

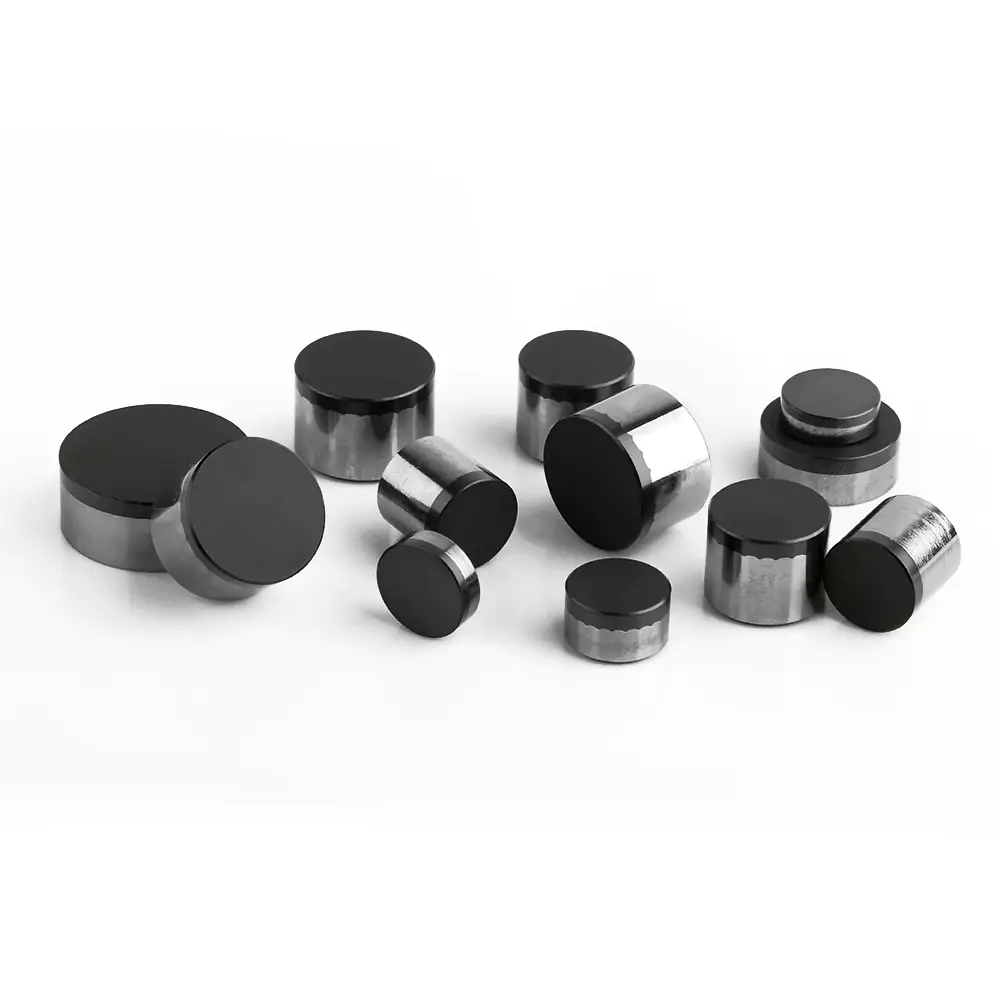

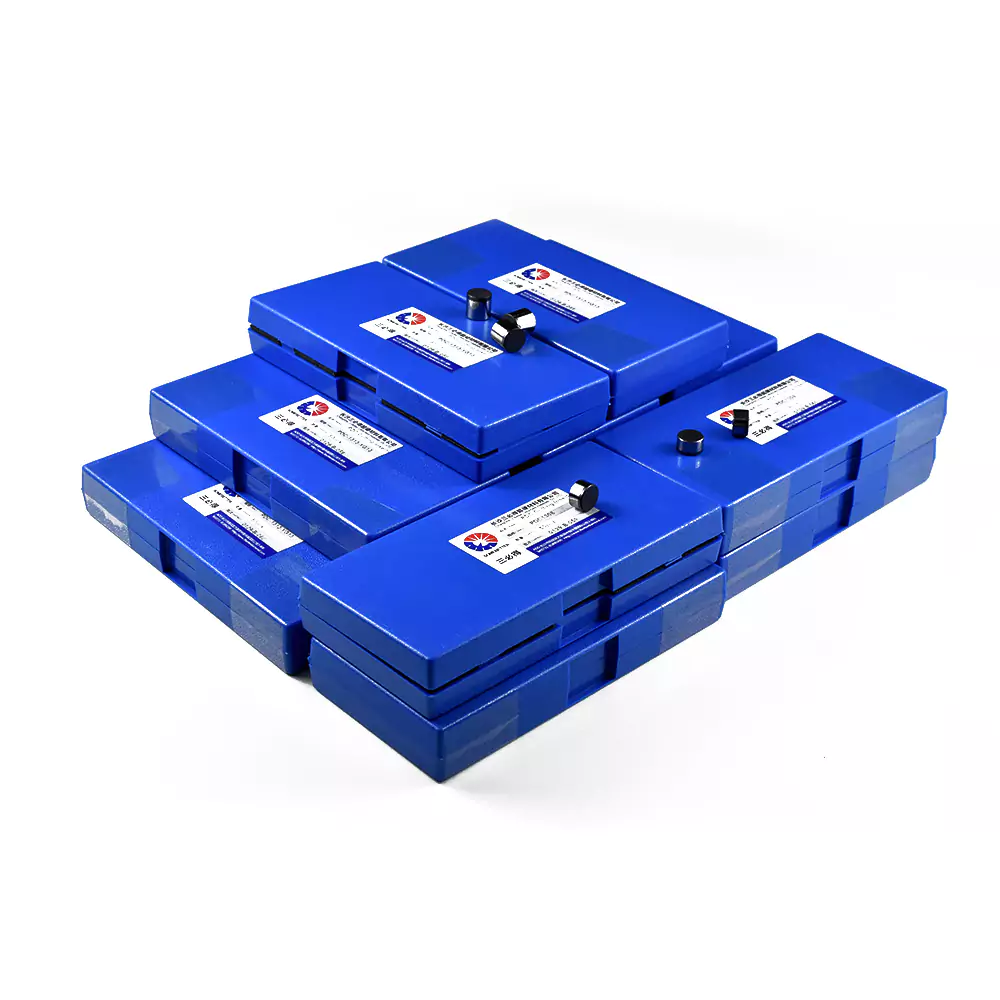

PDC cutters for gauge protection 2 PDC cutters for gauge protection 3

RFQ

Our factory typically produces items based on orders. The production cycle ranges from 3 to 10 working days, depending on the order size.

However, production may be sequenced during high-order volume periods, potentially extending the production cycle.

If timely delivery is crucial for you, please consult with our sales team to confirm a more accurate timeline.

We cooperate with DHL, FedEx, UPS, TNT, and other major carriers. If you do not specify a preferred carrier, our follow-up department will select the most suitable one.

Typically, delivery to Europe and America takes about 7 days, to Asian countries 3-4 days, and to other American countries 10-15 days. Please note that the exact times are subject to the schedules published by the shipping companies.
