Diamond conical PDC inserts

This series of PDC inserts by using specialized interface optimized technology and manufacturing process to adopt different designs and different applications. Except for the excellent impact resistance properties, the PDC inserts also have high wear and heat resistance.HTHP press, and double or three diamond layer design.
Application:
Used for road milling machinery operation.
Description

PDC inserts are made of tungsten carbide substrates and diamond powder sintered under high temperature and high pressure, which have the impact property of tungsten carbide and the wear resistance of diamond. At the same time, due to the excellent thermal conductivity and wear resistance of diamond, the thermal fatigue failure in the process of rock breaking can be greatly reduced in the application process.

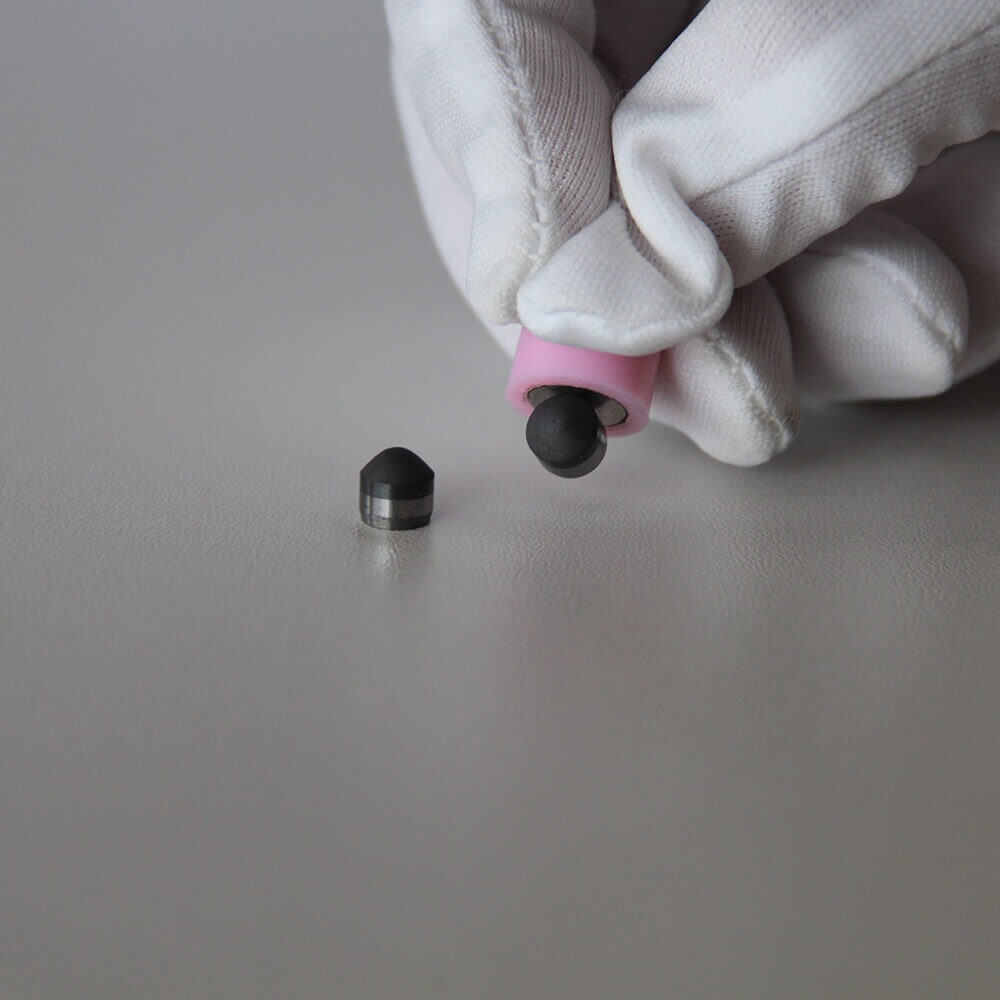

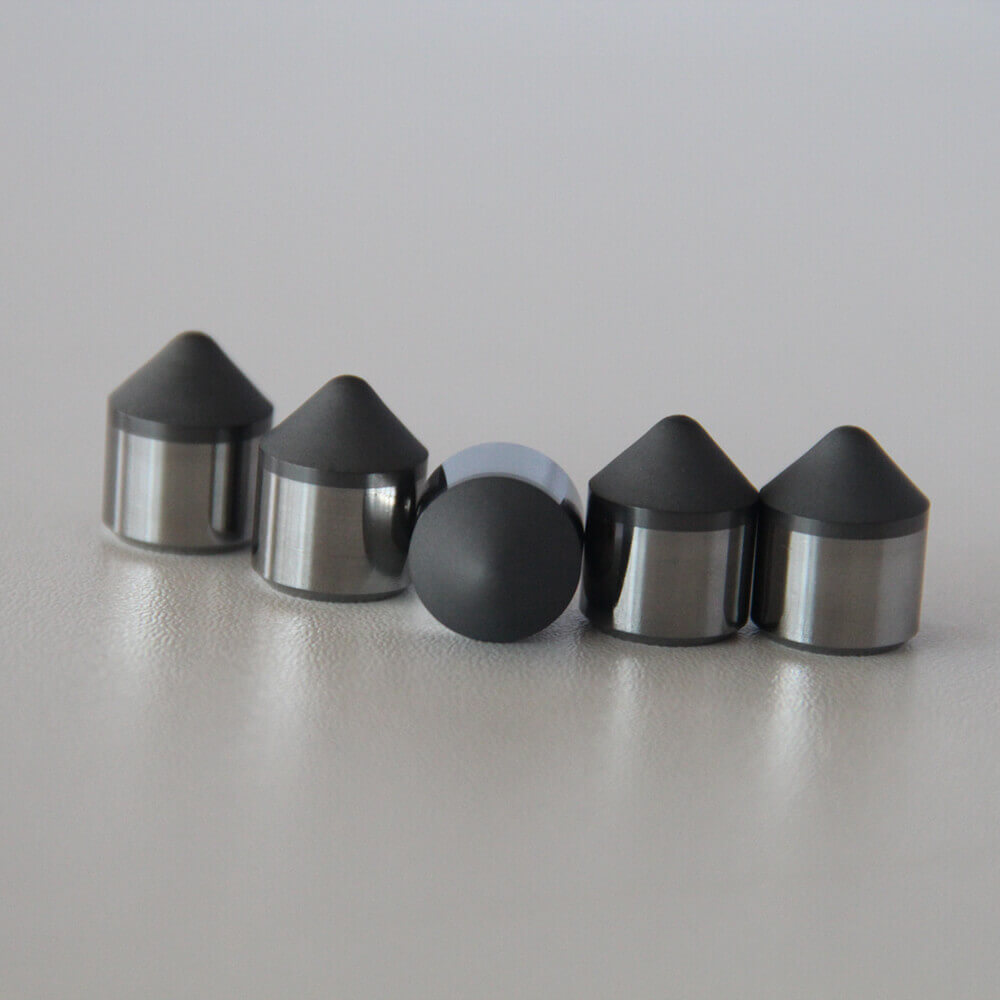

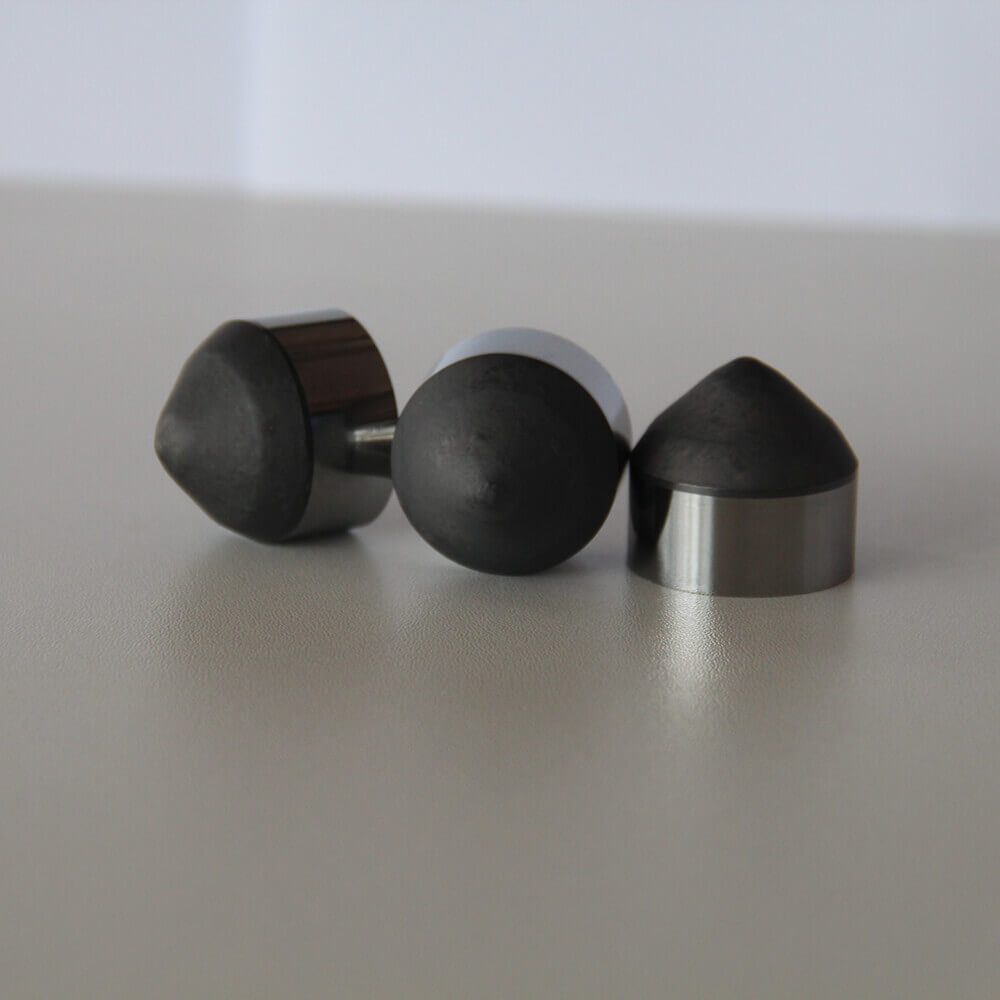

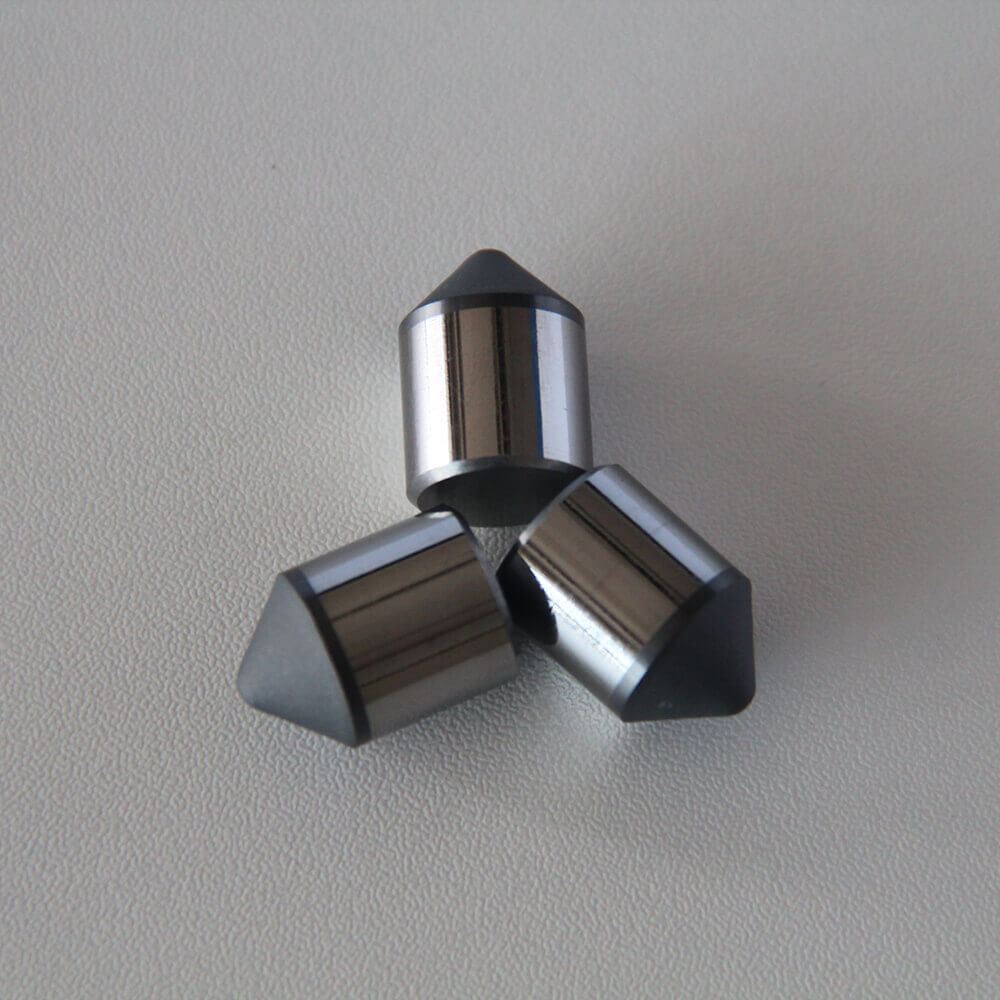

Diamond conical PDC inserts

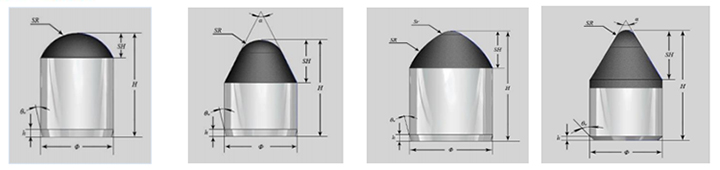

Available Sizes



Product Model Diameter Height Radius of Dome Exposed Height
C0606 6.421 6.350 2 2.4
C0609 6.400 9.300 1.5 3.3
C1114 11.176 13.716 2.0 5.5
C1210 12.000 10.000 2.0 6.0
C1214 12.000 14.500 2 6
C1217 12.000 17.000 2.0 6.0
C1218 12.000 18.000 2.0 6.0
C1310 13.700 9.855 2.3 6.4
C1313 13.440 13.200 2 6.5
C1315 13.440 15.000 2.0 6.5
C1316 13.440 16.500 2 6.5
C1317 13.440 17.050 2 6.5
C1318 13.440 18.000 2.0 6.5
C1319 13.440 19.050 2.0 6.5
C1420 14.300 20.000 2 6.5
C1421 14.870 21.000 2.0 6.2
C1621 15.880 21.000 2.0 7.9
C1925 19.050 25.400 2.0 9.8
C2525 25.400 25.400 2.0 10.9
C3028 29.900 28.000 3 14.6
C3129 30.500 28.500 3.0 14.6

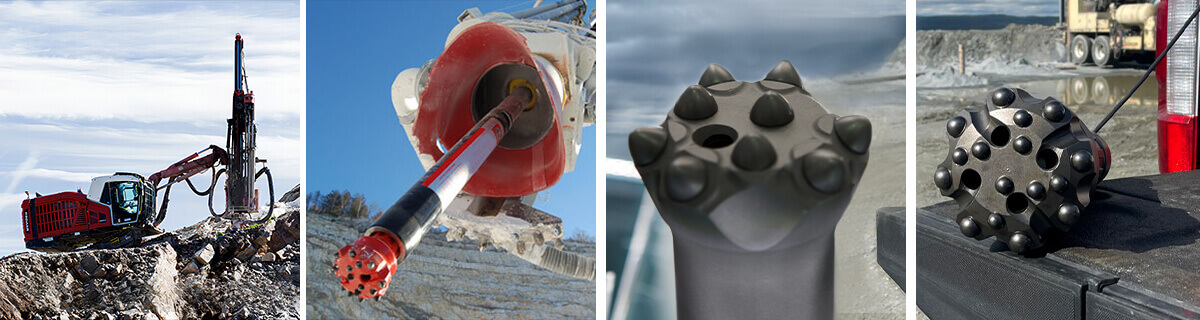

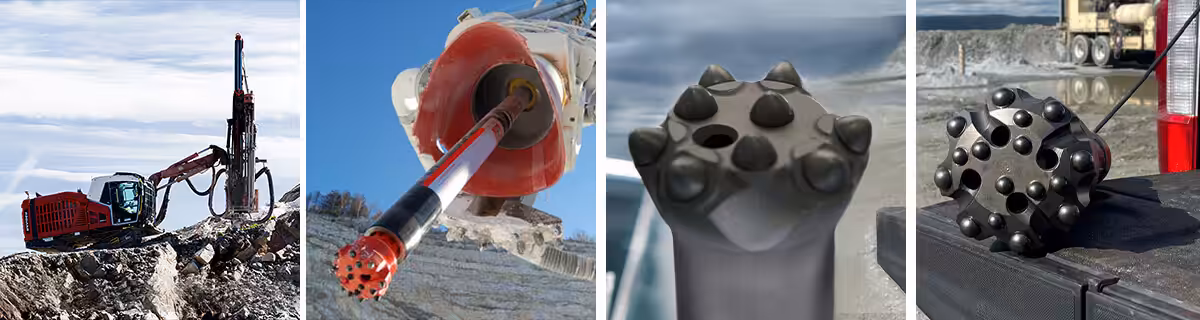

Application
