Products

PDC cutters for quarry mining

This series has good wear resistance and is widely used in stone mining and cutting and grinding due to its superior performance. This type of PDC cutter adopts different manufacturing processes and can provide different shapes, sizes, and application formula designs according to customer demands. The products are stable and efficient. The raw materials have been accepted by many customers. The best-selling products depend on high quality and competitive prices.
Usage:   For Chain Saw Machine such as FANTINI, GARRONE, BENETTI, DAZZINI, etc., Diamond Wire-saw, Floor Flattening Equipment to process marble, granite, limestone, etc.
Size:  0808/1008/1304/1308/1313/9.4*9.4*8.0/12.7*12.7*8/12*12*1.6/10*10*3.2
Shape:   Round Plain/flat; Square/ Fan shape/Cutting and customized shape and all sizes are available with tails.

Description

PDC cutter is made of diamond powder and high-impact tungsten carbide. Because of its superior performance, it is widely used in stone cutting and grinding, coal mining, water well drilling, geological drilling, etc. Our PDC cutter adopts a state-of-the-art manufacturing process; many customers have accepted raw materials. Bestselling depends on high quality and competitive prices.

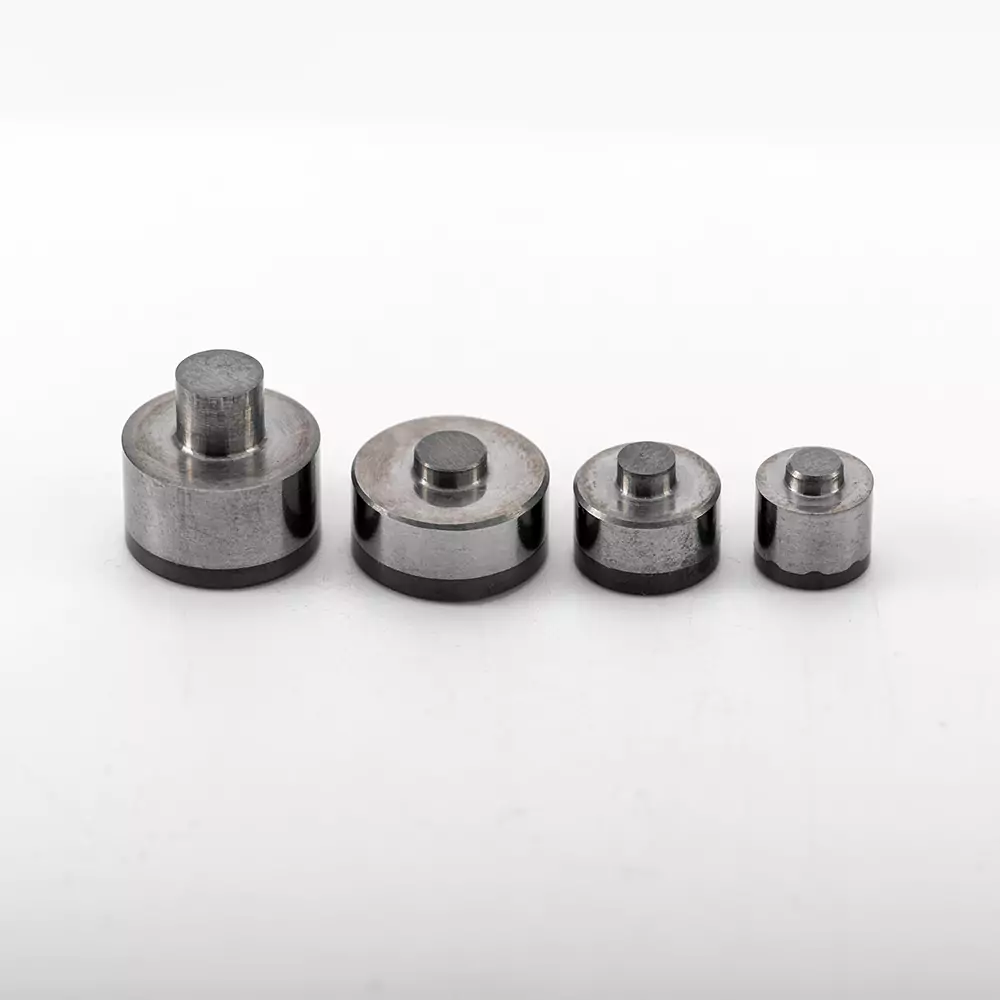

PDC cutters for quarry mining 1

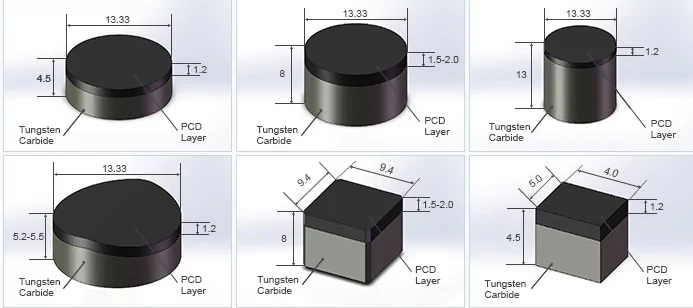

Available Sizes



     Code   Diameter(mm)   Total Height(mm)   PCD Thickness (mm)          Shape
1313 13.44 13.2(8.2+5.0) 1.5-2.5 Round with tip
1308 13.44 8.0(4.0+3.0) 1.5-2.5 Round with tip
0808 8.0 8.0 1.5-2.0 Round with tip
1313 13.44 13.2 1.5-2.0 Round
1308 13.44 8.0 1.5-2.0 Round
1304 13.44 4.0 1.2-1.5 Round
1008 10.00 10.0 1.5-2.0 Round
0808 8.00 8.0 1.5-2.0 Round
1/2 1308 1/2 1308 8.0 1.2-1.5 Cutted
1/4 1308 1/4 1308 8.0 1.2-1.5 Cutted/Fan shape
Code   L(mm)   W(mm)   Total Height(mm)   PCD Thickness (mm)          Shape
  12.7*12.7*8 12.7 12.7 8.0(4.5+3.5) 1.5-2.0   Square with tip
9.4*9.4*8 9.4 9.4 8.0(4.5+3.5) 1.5-2.0 Square with tip
12.7*12.7*8 12.7 12.7 8.0 1.5-2.0 Square
9.4*9.4*8 9.4 9.4 8.0 1.5-2.0 Square
12*12*1.6 13.44 8.0 1.6 1.5-2.0 Square
10*10*3.2 13.44 4.0 3.2 1.2-1.5 Square
12*12*5.0 10.00 10.0 5.0 1.5-2.0 Square

Note: The above specifications are for users to choose from. At the same time, different specifications of products can be produced and processed according to the requirements and drawing of users.



Advantage



1. Adopt good quality diamond micron powder to make the PCD Layer.
2. Stable performance, long service life, good impact and abrasion.
3. Inserts on drillers or chain saw machines are easy to replace.
4. Strict quality control: all our PDC cutters will be tested before shipping, and the products you received are all of high quality.
5. Fast delivery: The normal and popular models are always in stock, and a shipment will be made soon after your payment.
6. OEM & ODM accepted: we can produce PDC cutters as per your drawing.

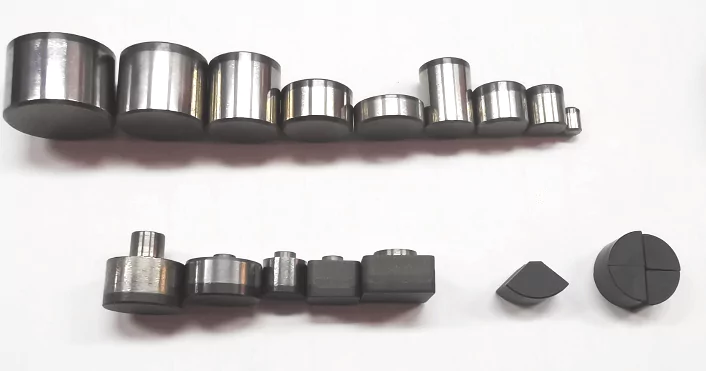

PDC cutters for quarry mining 2

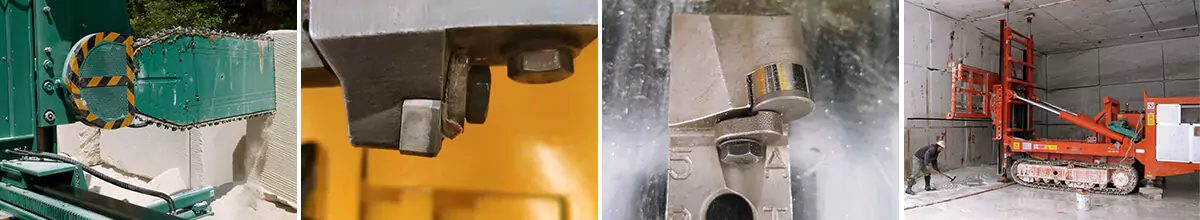

Application



Mainly used for chain saw machine of cutting stone with marble quarry machine and other wear-resistant parts. It also can be used for diamond tools for cutting, grinding, and polishing, such as PDC cup wheels for stone grinding machines.

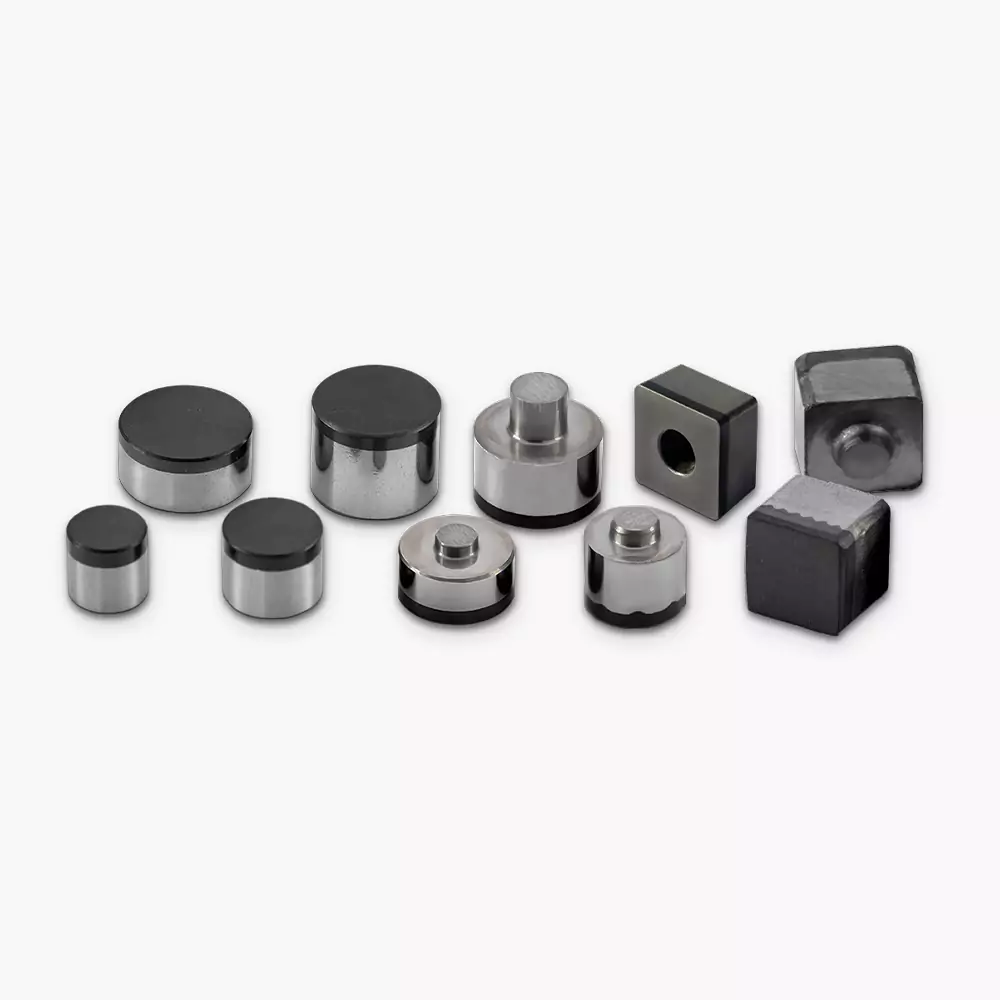

PDC cutters for quarry mining 3

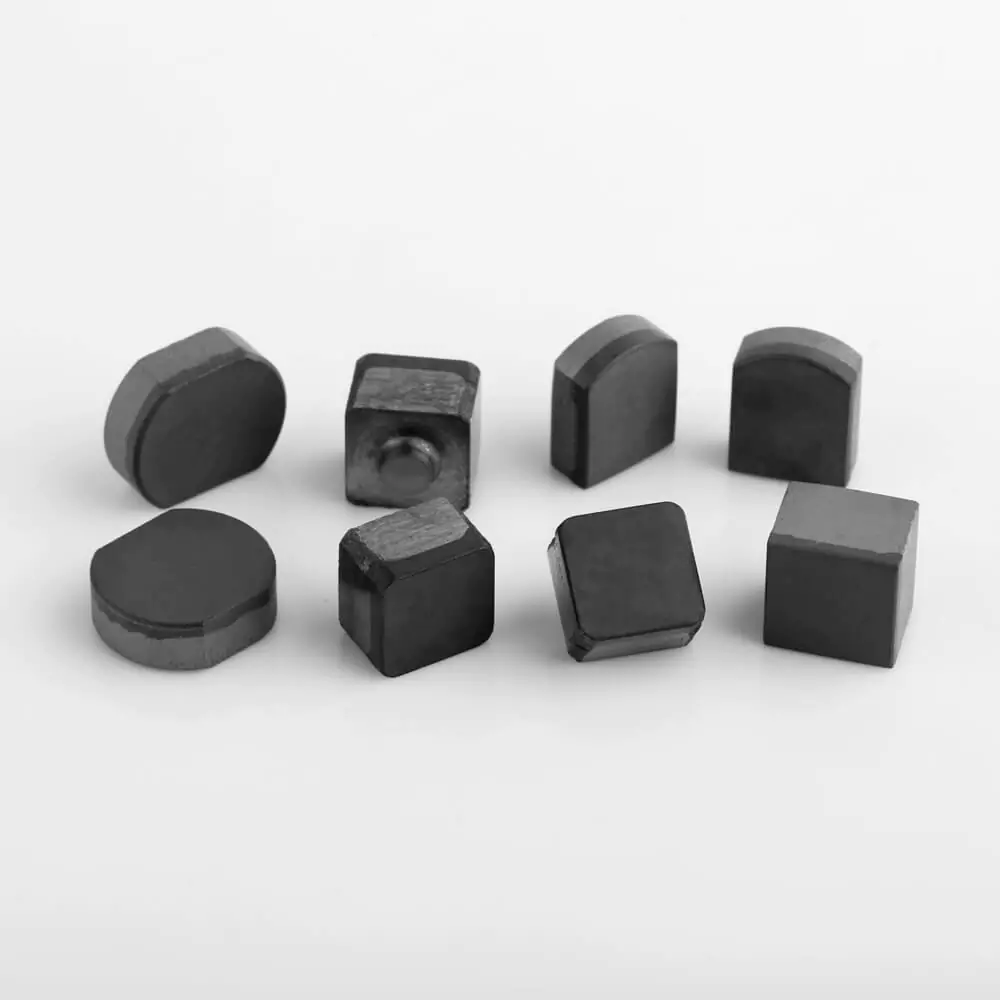

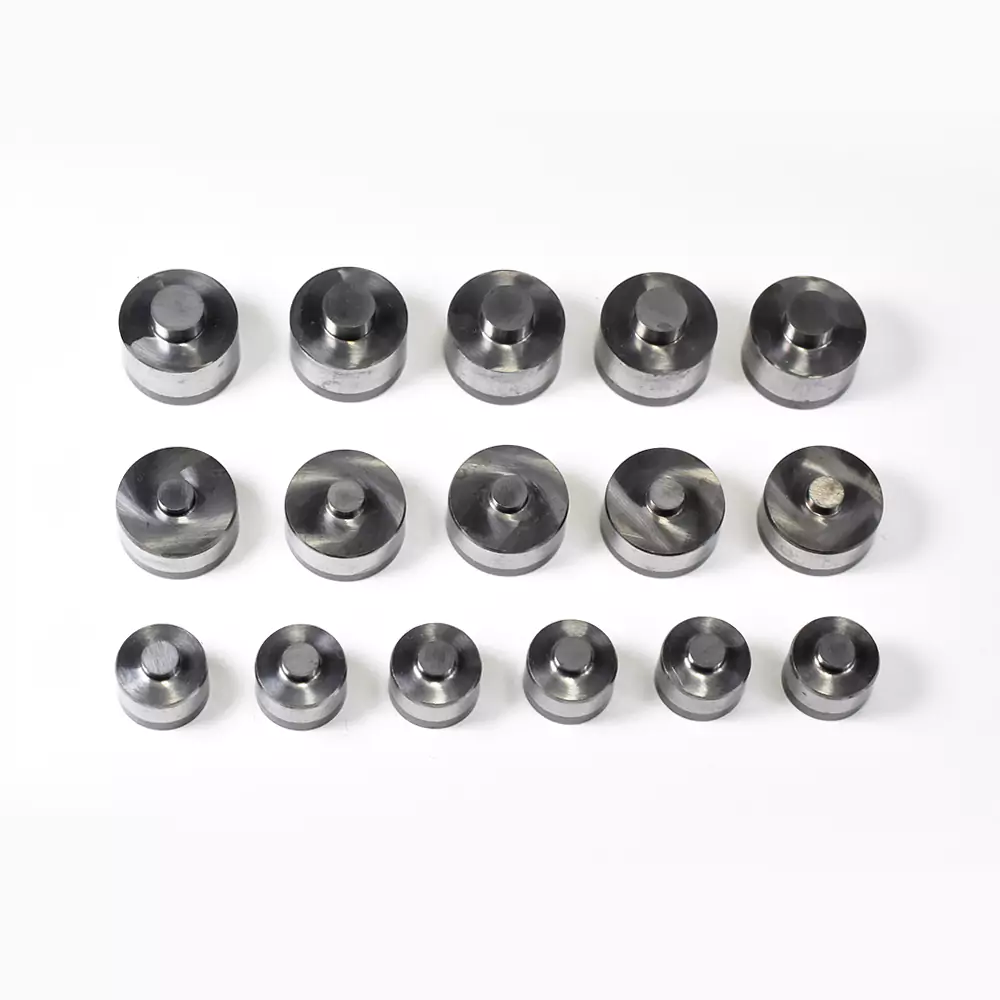

PDC cutters for quarry mining 4 PDC cutters for quarry mining 5

RFQ

Our factory typically produces items based on orders. The production cycle ranges from 3 to 10 working days, depending on the order size.

However, production may be sequenced during high-order volume periods, potentially extending the production cycle.

If timely delivery is crucial for you, please consult with our sales team to confirm a more accurate timeline.

We cooperate with DHL, FedEx, UPS, TNT, and other major carriers. If you do not specify a preferred carrier, our follow-up department will select the most suitable one.

Typically, delivery to Europe and America takes about 7 days, to Asian countries 3-4 days, and to other American countries 10-15 days. Please note that the exact times are subject to the schedules published by the shipping companies.
